HD-SDI Camera
VCC-70ZH HD-SDI Zoom Camera
Description Features
• 1/2.8" 2.1 Mega Pixel CMOS Image Processor
• 20x Optical Zoom (4.7mm ~ 94.0mm Focal Range)
• Simultaneous HD-SDI and Analog video output
• SDI Video Outputs: HD-SDI
• Analog Video Outputs: AHD, TVI, CVI, CVBS, EX-SDI
• Durable aluminum camera housing

 Model No.  VCC-70ZH
 Image sensor  1/2.8-Type Progressive Scan CMOS Image Sensor
 Effective Pixels  1945(H) x 1097(V)
 Lense Type  20x optical zoom
 Focal Length  4.7mm (wide) ~ 94.0 mm(tele)

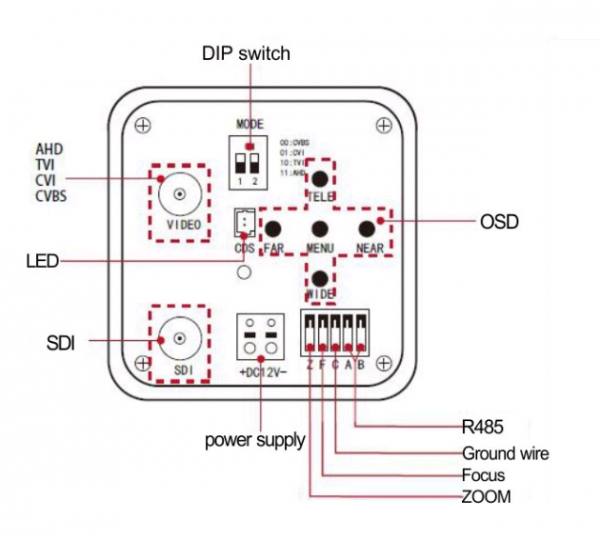

 Video Output Connectors  BNC Female x2
 SDI Video Outputs   HD-SDI
 SDI Video Standard  1080p: 30, 25 Hz
 720p: 60, 50, 30, 25Hz
 Analog Video Outputs  AHD, TVI, CVI, CVBS, EX-SDI
 Analog Video Standard  1080p: 30, 25 Hz
 720p: 60, 50, 30, 25Hz
 Minimum Illumination  Color: 0.21Lux (F1.6)
 B/W: 0.01Lux(F1.6)
 S/N Ratio  48dB
 Shutter Speed  1/50~1/100000 sec.
 Focus Control   Auto Focus, Manual Focus
 Digital Wide Dynamic Range  Support
 Sens-up  x2 ~ x32
 Day&Night Mode  Auto, Color, B&W, EXTERN
 Backlight Compensation  OFF, HLC, BLC, WDR
 White Balance  Auto, Manual
 Dynamic Noise Reduction  Low, Middle, High
 Flip / Mirror  Image Flip , Mirror
 Privacy Mask Image  OFF, ON
 Gamma Correct  OFF, ON
 Defog  OFF, ON
 On Screen Display  English, T_Chinese, Japanese, Korean
 Control Method  Screen Menu, Line Control
 Control Interface  RS485
 Control Protocols  Pelco-D
 Baud rate   2400, 4800, 9600
 Operating Temperature   -30ºC ~ 60ºC, Humidity 90% or less (non-condensing)
 Storage Temperature  -30ºC ~ 60ºC
 Power Supply  DC12V 1.0A

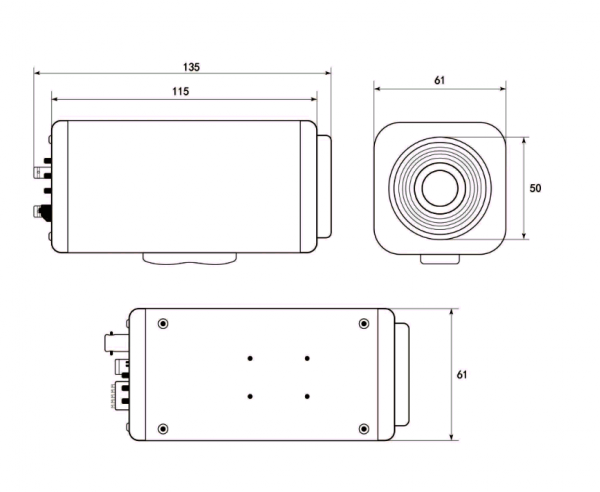

 Dimensions  62(W) x 62(H) x 116(L)mm
 Weight  425g
 EMC Standard  CE-EMC
 EN55032:2015, EN55035:2017, EN61000-3-2:2019
 Warranty  1-year warranty
 Product specifications are subject to change without notice.


On Screen Display

CategoriesFile NameDownload
title shadow
awProduct CatalogVCC-70ZH (E)Download
