Encoder / Decoder
VMI-HN001-HD HDMI ENCODER (H.265)
Description Features
• HDMI loop out Support
• Encoding format: H.265, H.264, M-JPEG
• Maximum resolution frame rate: 1920 x1080p
Low-latency private : 200 ms
• Video protocol: RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast
• Support ONVIF search and browse video docking with NVR
• Audio: HDMI audio input or 3.5mm external audio input, supports
stereo
• Configure parameters and upgrade firmware through WEB
pic
pic
pic
pic
pic

 Model No.  VMI-HN001-HD
 Video(Audio) Input  HDMI x 1 -  1 set of HDMI signal built-in audio,
                   1 set of HDMI signal external audio
 Video(Audio) Output  HDMI x 1 -  1 set of HDMI signal built-in audio
 Video Encoding / Encoding type  H.265, H.264, M-JPEG
 Bitrate(Kbit)  Adjustable
 HDMI Input Support
 1080p 60, 59.94, 50Hz
 1080i,
60, 59.94, 50Hz
 720p, 60 50Hz
 Video Compression Standard  High Profile, Main Profile, Base Line
 Streaming adjustments  CBR / VBR Adjustable
 Media Transmission Protocols  RTMP, RTSP, TS, FLV, HLS, UDP Multicast, RTP   Multicast
 Audio Encoding  AAC, MP3, MP2, AC3 Adjustable
 Audio encoding sample rate  44100 ~ 48000 Adjustable
 Audio Video
 Audio bitrate
 AAC: 48000 ~ 320000 Adjustable
 MP3: 64000 ~ 320000 Adjustable
 MP2: 64000 ~ 320000 Adjustable
 AC3: 40000 ~ 640000 Adjustable
 Volume  Adjustable
 Ethernet Port  100Mbps
 Network configurationt  Web settings
 ONVIF  Support
 Power Supply  12VDC 2A
 Power Consumption  3W
 Operating Temperature  -20ºC ~ 60ºC, Humidity 90% or less (non-condensing)
 Dimensions  155 x 102 x 32 mm
 Weight  250g


Product specifications are subject to change without notice.


HDMI/SDI Encoder Online Demo


Compatibility
Luxriot, Milestone, Digifort, Axxon, Exacq, Gentec, Aimtis, Avigilon, BLUE IRIS Software

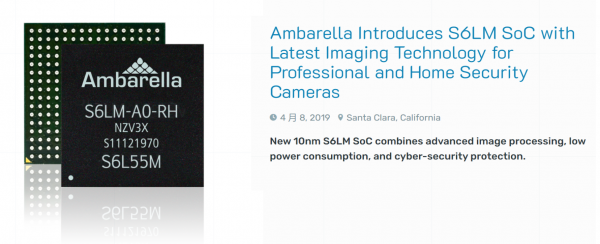

SoC: Ambarella S6L




VMI-HN001-HD IP address  http://203.67.18.23

ONVIF PORT : 80

User Name: admin, Password: admin

RTSP/RTMP/TS/Onvif Support


IE Browser / Google Chrome / Safari support




RTMP pushing parameters



RTSP service parameters
Main Stream

rtsp://203.67.18.23:554/0


Sub Stream

rtsp://203.67.18.23:554/1


Third Stream
rtsp://
203.67.18.23:554/2


Onvif Support
