Model No. |
ACT-VF03 |
|

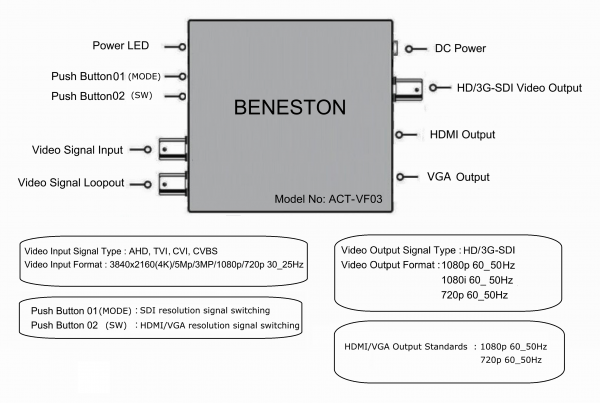

Connections |
|
|
AHD/TVI/CVI Video Inputs |
1 x BNC -F |
|
AHD/TVI/CVI Video Outputs |
1 x loopout (BNC -F) |
|
Input Signal Type |
AHD / CVI / TVI / CVBS All Type |
|
SDI Outputs |
1 x SDI (without embedded audio) |
|
SDI Rates |
HD/3G-SDI |
|
SDI Compliance |
SMPTE425M(Level A and Level B)
SMPTE424M
SMPTE292M
SMPTE259M-C and DVB-ASI |
|
SDI Transmitting distance |
Belden 1694A : 120m at 2.97Gb/s
200m at 1.485Gb/s |
|
HDMI Video Outputs |
1 x TypeA (v1.4a) |
|
Standards |
|
|
AHD/TVI/CVI Video Standards |
720p30_25Hz
1080p30_25Hz
5MP
4K |
|
SDI Video Standards |
720p 60_50Hz
1080i 60_50Hz
1080p 60_50Hz |
|
SDI Color Precision |
4:2:2 |
|
SDI Color Space |
YUV |
|
HDMI Video Standards |
720p 60_50Hz
1920x1080i 60_50Hz
1920x1080p 60_50Hz |
|
General |
|
|
Power Supply |
DC12V, 1A |
|
Power Consumption |
3.6 Watts |
|
Operating Temperature |
-10°C ~ 55°C |
|
Storage Temperature |
-30°C ~ 60°C |
|
Relative Humidity |
20 ~ 90% RH (Non-condensation) |
|
Dimensions |
145mm x 90 x 35mm |
|
Weight |
270g |
|
Casing |
Aluminum Case |
|
Warranty |
1-year warranty |
