Matrix Switcher
BE-7000 Series Video Matrix Switcher (AHD/CVI/TVI/CVBS)
Description Features
• Microprocessor-Based, full cross-point video matrix switcher.
• Support CVBS or HD-AHD or HD-TVI or HD-CVI input.
• Up to 128 video inputs by 32 video outputs for per case
extendable up to 512 video inputs and 64 video outputs.
• Factory tested prepackaged system configuration and quick-guide manual.
• Camera title in Chinese, English, French, Russian,.. etc.
• Chinese/English Menu for setting matrix function.
• Adopt image programmable technology.
• With power failure safeguard and image synchronization functions.
• User priority and password, system partition setting.
• Connect with up to 16 keyboards.
• PTZ Protocol : Pelco-D , Pelco-P , VIDEOACCESS
• Scalable high density architecture design for easy expansion, 19" 4U standard aluminum case.
• Powerful Macro Programming.
• CE compliant.
pic
pic

 Model No.  BE-7000
 Maximum Inputs  128 CH
 Maximum Outputs   32 CH
 Video Input signal  1.0Vp-p (75Ω)
 Video output signal  1.0Vp-p (75Ω)
 Video S/N  >70.5dB
 Video Input isolation degree  >55dB
 Video output isolation degree  >50dB
 Video channel bandwith  12MHz
 OSD Menu  Support
 Switch Attribute  Manual/Auto cross point switch and salvos
 Switch mode  Power synchronous switch
 Switching speed  <25ms
 Communication Mode  RS485
 Maximum allocated keyboard  16
 PTZ Protocol  Pelco-D, Pelco-P, VIDEOACCESS
 Baud Rate  1200, 4800, 9600, 19200
 Data storage  Built-in memory, all data is stored for 15 years
 Character overlay  Support
 On-screen display  Date/Time, camera title, alarm info...etc
 Working Voltage  AC110V/60W 60Hz or  AC220V/60W 50Hz

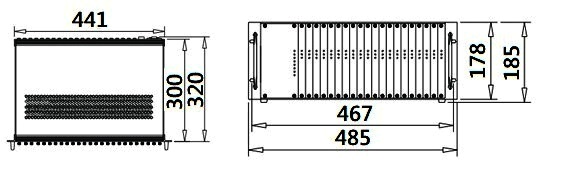

 Dimensions  485mm(L) x 320mm(W) x 185mm(H)
 Installation Mode  Desktop or 19” standard rack

Product specifications are subject to change without notice.

MATRIX SIZE
